How To Build Your Own Red Light Therapy Panel?

Views: 222     Author: Becky     Publish Time: 2025-03-09      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

Content Menu

Understanding the Science Behind Red Light Therapy

Materials and Tools: A Detailed Breakdown

>> 1. LED Selection

>> 2. Heat Management Components

>> 3. Power Supply and Wiring

>> 4. Safety and Control Features

Step-by-Step Construction Guide

>> Step 1: Panel Layout Design

>> Step 2: LED Preparation

>> Step 3: Mounting LEDs

>> Step 4: Wiring the Circuit

>> Step 5: Integrating Controls

>> Step 6: Testing and Calibration

Advanced Customization Options

Safety Protocols and Risk Mitigation

Cost Analysis: DIY vs. Commercial Panels

Optimizing Treatment Efficacy

Maintenance and Longevity Tips

Limitations and Considerations

Conclusion

Frequently Asked Questions

>> 1. Can I Use Regular Red LEDs Instead of Specific Wavelengths?

>> 2. How Do I Calculate the Optimal Session Duration?

>> 3. Are DIY Panels Safe for Pets?

>> 4. Can I Combine Red and NIR LEDs in the Same Circuit?

>> 5. How Long Do DIY Panels Last?

Red light therapy (RLT) has emerged as a promising non-invasive treatment for skin rejuvenation, pain management, and muscle recovery. While commercial devices dominate the market, building your own red light therapy panel offers customization, cost savings, and a deeper understanding of the technology. This guide provides detailed instructions, scientific insights, and practical tips to help you create an effective DIY panel.

how to build your own red light therapy panel_1

Understanding the Science Behind Red Light Therapy

Red light therapy operates on the principle of photobiomodulation, where specific wavelengths of light (typically 660nm red and 850nm near-infrared) penetrate the skin to stimulate cellular energy production. These wavelengths target mitochondria, enhancing adenosine triphosphate (ATP) synthesis, which accelerates tissue repair and reduces inflammation. Studies suggest benefits for:

- Collagen production and anti-aging

- Wound healing and scar reduction

- Joint pain and muscle recovery

- Improved sleep and circadian rhythm regulation

The effectiveness of RLT depends on wavelength accuracy, light intensity (measured in irradiance), and treatment duration. DIY builders must prioritize these factors to replicate clinical results.

Materials and Tools: A Detailed Breakdown

1. LED Selection

- 660nm Red LEDs: Ideal for superficial tissue (skin, subcutaneous layers).

- 850nm Near-Infrared (NIR) LEDs: Penetrates deeper into muscles and joints.

- Recommended Specifications:

- Power: 3W–5W per LED for balanced intensity and heat management.

- Viewing Angle: 60–120 degrees for uniform coverage.

- Certification: Look for LEDs with RoHS compliance to ensure safety.

2. Heat Management Components

- Aluminum Panel: Acts as a heat sink; thickness ≥3mm for optimal dissipation.

- Thermal Adhesive: Epoxy-based adhesives ensure LEDs remain securely attached.

3. Power Supply and Wiring

- 12V DC Power Supply: Match voltage to LED requirements (e.g., 20 LEDs × 3W = 60W total; select a 12V/5A supply).

- Wire Gauge: 18–22 AWG for low resistance and minimal voltage drop.

- Connectors: Waterproof solderless connectors simplify assembly.

4. Safety and Control Features

- Fuse: Install a 5A fuse to prevent overload.

- Dimmer Switch: Adjust intensity for personalized dosing.

- Timer Circuit: Automatically shuts off the panel after a set duration (e.g., 10–20 minutes).

Step-by-Step Construction Guide

Step 1: Panel Layout Design

- Calculate the spacing between LEDs using the inverse square law to ensure uniform irradiance. For 3W LEDs, a 2–3 inch gap prevents "hotspots."

- Use graph paper or CAD software to map positions.

Step 2: LED Preparation

- Group LEDs into parallel circuits of 5–10 units to maintain consistent voltage.

- Pre-solder wires to LED terminals, leaving 6-inch leads for flexibility.

Step 3: Mounting LEDs

- Apply thermal adhesive to each LED's base and press firmly onto the aluminum panel.

- Allow 24 hours for the adhesive to cure fully.

Step 4: Wiring the Circuit

- Connect all positive terminals to a central bus wire and negatives to a separate bus.

- Use heat-shrink tubing to insulate solder joints.

Step 5: Integrating Controls

- Mount the dimmer and timer on the panel's edge for easy access.

- Connect the fuse between the power supply and main circuit.

Step 6: Testing and Calibration

- Use a lux meter to measure irradiance at 6–12 inches (target: 50–100 mW/cm²).

- Adjust the dimmer to achieve desired intensity.

how to build your own red light therapy panel_2

Advanced Customization Options

1. Dual Wavelength Control

Install separate switches for red and NIR LEDs to tailor treatments (e.g., red for skin, NIR for muscles).

2. Pulsing Mode

Add a pulse-width modulation (PWM) circuit to mimic clinical protocols (e.g., 10Hz pulses for enhanced cellular response).

3. Modular Design

Build smaller, interlocking panels for flexible full-body coverage.

Safety Protocols and Risk Mitigation

1. Electrical Safety

- Test circuits with a multimeter before powering on.

- Ground the aluminum panel to prevent shocks.

2. Optical Safety

- Avoid direct eye exposure; use protective goggles during testing.

- Follow exposure guidelines: ≤100 J/cm² per session.

3. Heat Management

- Monitor panel temperature during initial use; add cooling fans if needed.

Cost Analysis: DIY vs. Commercial Panels

Component DIY Cost Commercial Equivalent
LEDs $60–$120 $300–$600
Power Supply $30 Included
Housing $40 $200–$400
Total $130–$190 $500–$1,500

DIY savings: 60–80%, with comparable performance achievable through careful component selection.

Optimizing Treatment Efficacy

1. Dosage Guidelines

- Distance: 6–12 inches from skin.

- Duration: 10–20 minutes per area.

- Frequency: 3–5 sessions weekly.

2. Skin Preparation

Cleanse skin to remove barriers (e.g., makeup, lotions) that reflect light.

3. Combination Therapies

Pair RLT with topical antioxidants (e.g., vitamin C) for enhanced collagen synthesis.

Maintenance and Longevity Tips

- Monthly Inspections: Tighten loose connections and replace dimming LEDs.

- Annual Calibration: Verify irradiance with a lux meter.

- Storage: Keep in a low-humidity environment to prevent corrosion.

Limitations and Considerations

- Regulatory Compliance: DIY panels lack FDA clearance; consult a physician for medical use.

- Technical Skill Required: Basic soldering and electrical knowledge are essential.

Conclusion

Building a red light therapy panel is a rewarding project that combines electronics, biology, and wellness. By selecting quality components and adhering to safety standards, you can create a device rivaling commercial units at a fraction of the cost. Whether targeting skin health, pain relief, or athletic recovery, this DIY approach empowers users to take control of their wellness journey with scientifically backed technology.

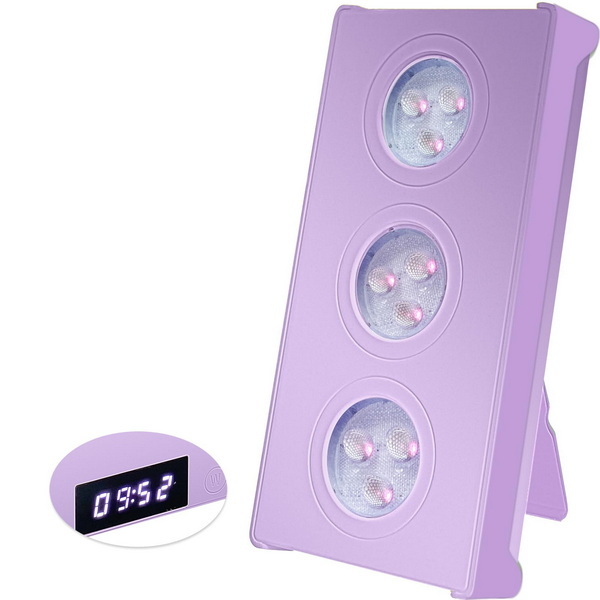

how to build your own red light therapy panel_3

Frequently Asked Questions

1. Can I Use Regular Red LEDs Instead of Specific Wavelengths?

Answer: No. Standard red LEDs (e.g., 630nm) lack the optimal penetration depth. Always use 660nm (red) and 850nm (NIR) LEDs for clinical-grade results.

2. How Do I Calculate the Optimal Session Duration?

Answer: Use the formula: Time (seconds) = Energy Dose (J/cm²) / Irradiance (W/cm²). For 50 mW/cm² and a 60 J/cm² dose: 60 / 0.05 = 1,200 seconds (20 minutes).

3. Are DIY Panels Safe for Pets?

Answer: Yes, but reduce the dosage by 50% and avoid direct eye exposure. Consult a veterinarian for pet-specific protocols.

4. Can I Combine Red and NIR LEDs in the Same Circuit?

Answer: Yes, but use separate switches to control wavelengths independently for targeted treatments.

5. How Long Do DIY Panels Last?

Answer: High-quality LEDs last 50,000+ hours. Replace the power supply every 3–5 years.
