A Power, lamp bead chips, band ratio, lens, heat dissipation structure.

A

A Traditional therapy lamp acts on the body surface by generating heat, while LED red light therapy lamp is a cold light source with the characteristics of high efficiency, energy saving, strong force, etc. In addition, the price is relatively cheap and easy to use.

A Irradiance refers to the radiation flux per unit area of ​​the surface of the irradiated object, I=dФ/dS, the unit is W/m² (we often use mW/cm²). S is the area. The irradiance characterizes the amount of radiation energy received per unit area per unit time on the surface irradiated by the radiation energy, that is, the radiation flux density on the irradiated surface. The higher the irradiance, the stronger the effect.

A

A Gift box, ordinary export box, customized color box

A Iron shell, aluminum shell, plastic, silicone

A Brands include Mean Well power supply, Osram power supply, waterproof power supply, plastic shell power supply, etc.

A 15 degrees/30 degrees/60 degrees/90 degrees

A LED lenses are mainly used for focusing and guiding the LED cold light source series products. The light distribution curve is designed according to the angle of the different LED light output, and the light loss is reduced and the light efficiency is improved by increasing optical reflection.

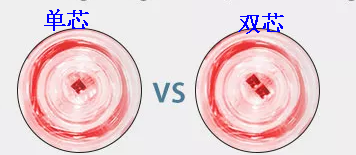

A A dual-core lamp bead has two light-emitting chips, that is, two light-emitting diodes are packaged in parallel.

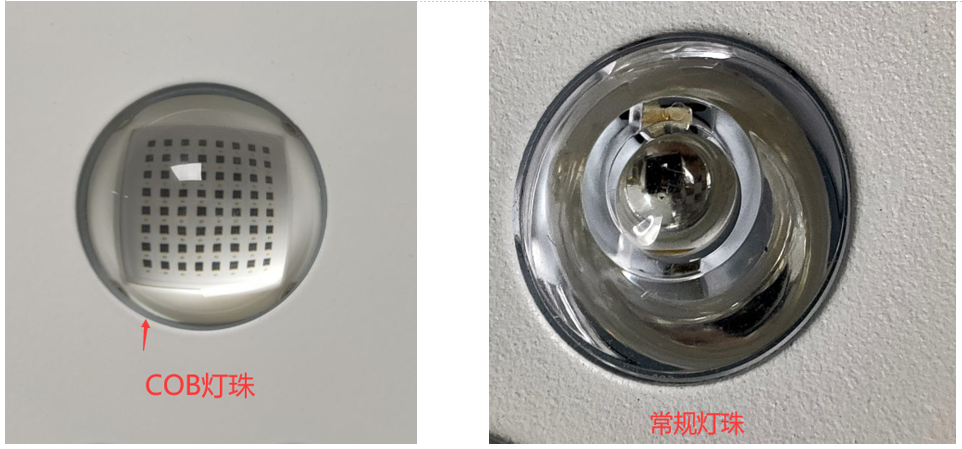

A COB lamp beads are an integrated light source package lamp bead that directly attaches the LED chip to a high-reflectivity mirror metal substrate. It has the characteristics of high power, good light color, high reduction, high height, and easy assembly.

A The size of the lamp bead does not refer to the size of the outer size of the lamp bead, but to the size of the lamp bead chip. Conventional chip size: 28mil 30mil 35mil 42mil 45mil. The larger the size of the lamp bead, the higher the power it can withstand. Generally, 42mil and 45mil are called 3W, and the rest are called 1W.

A The light source LED CHIP refers to the lamp bead, the light source of the lamp bead. The light source is divided into: Imitation lumen (high power): 1W 3W is a single chip on the bracket. COB integrated light source, CHIP ON BORD, multiple chips on a board. There can be multiple chips. SMD patch, mainly refers to low-power lamp beads, generally 0.2W 0.5W. For example, 3528 5050 3030 are all patch models.

A Near-infrared light 850nm has a particularly strong penetrating ability, penetrating deeper into tissues, organs and joints, and is ideal for promoting muscle recovery and relieving joint pain.

A Red light with a wavelength of 660nm is more absorbed by skin tissue, and is particularly suitable for promoting skin health and increasing collagen production.

A Red light 620-670nm, far-infrared light 700-1000nm, the most representative are 660nm and 850nm.

A

A Shell, light source, power supply, aluminum substrate, heat dissipation structure, radiator, lens.

A
